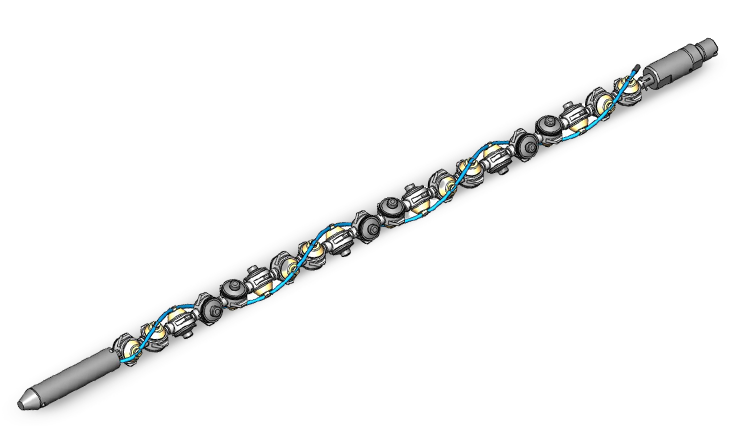

Capsule-type expendable perforation system Link 54-AT
Download
Application:
Perforation of casing tubing and drill pipes with a min bore diameter of 62 mm in non-aggressive environments; opening productive formations in wells filled with water, oil or flushing fluid, when the tubing is lowered and the wellhead is sealed.
| Characteristics | Perforatsionnaya sistema beskorpusnaya Link 54-AT | |
|---|---|---|
| Perforation density, holes/m | 20 | |
| Length, max, mm | 1400 | |
| Weight, kg | 8.6 | |
Advantages and features:
- the possibility of operation in the well with the tubing lowered and the wellhead sealed;
- increased drilling capacity of the perforator;
- the possibility of operation in a well with a small diameter with a deviated wellbore and local deformations in the casing string.
